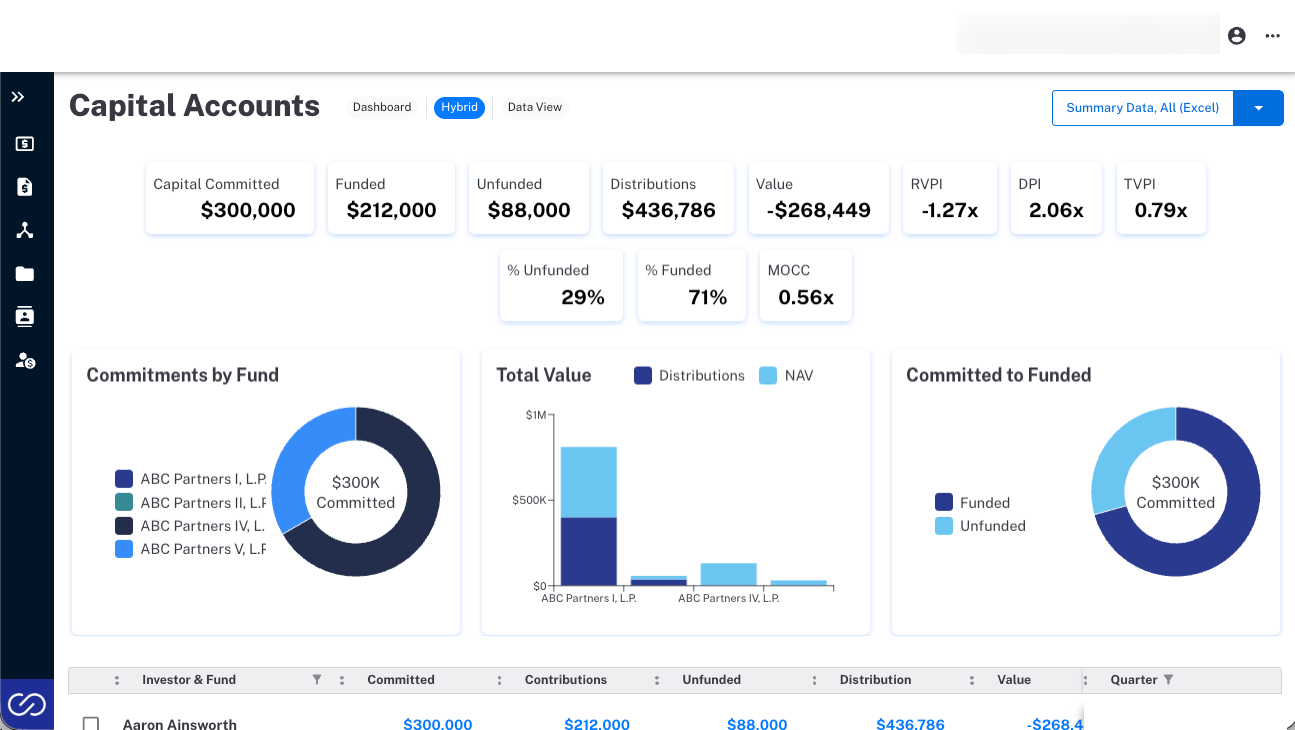

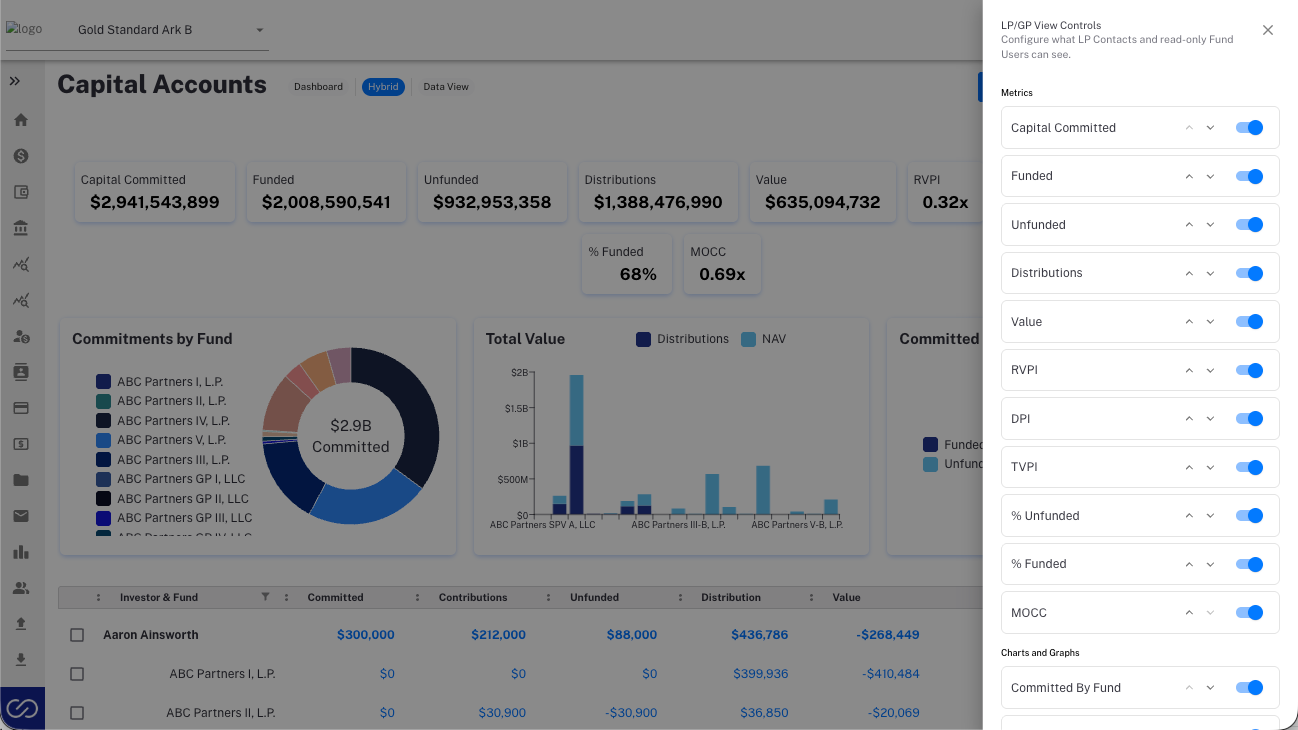

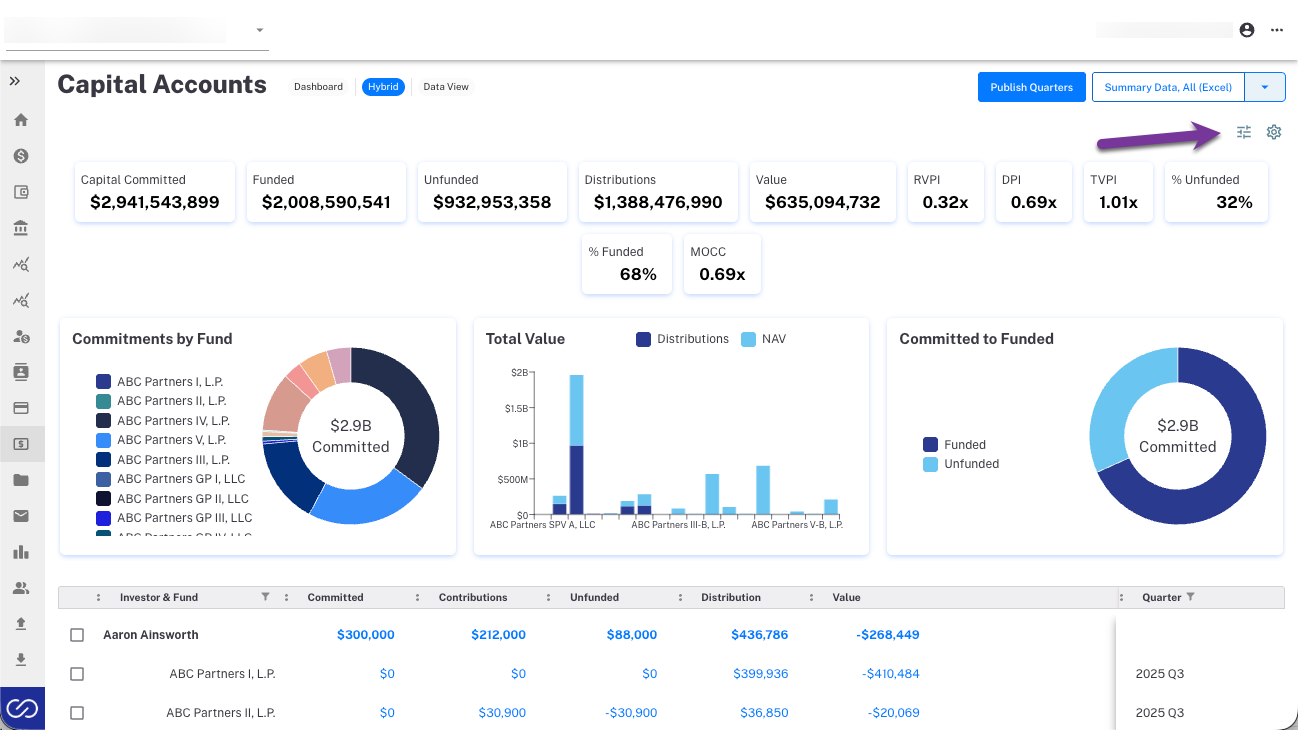

--- title: Managing and Customizing Data Visualizations in ark description: Learn how to enable, navigate, and customize visual dashboards in ark, including the new LP/GP View Controls that set what LP Contacts and read-only Fund Users see. --- [Skip to content](https://connect.arkpes.com/knowledge/managing-and-customizing-data-visualizations-in-ark#main-content) English - United States Show submenu for translations [Submit a Ticket](https://connect.arkpes.com/knowledge/kb-tickets/new?hsLang=en-us) [My Tickets](https://connect.arkpes.com/tickets?hsLang=en-us) [![ark](https://connect.arkpes.com/hs-fs/hubfs/ARK__Logotype_fullcolor.png?width=200&height=68&name=ARK__Logotype_fullcolor.png)](https://connect.arkpes.com/knowledge?hsLang=en-us) Open main navigation Close main navigation - English - United States Show submenu for translations - [Submit a Ticket](https://connect.arkpes.com/knowledge/kb-tickets/new) - [My Tickets](https://connect.arkpes.com/tickets) - [Email Ark Support](mailto:support@arkpes.com) [Email Ark Support](mailto:support@arkpes.com) Search the knowledge base - There are no suggestions because the search field is empty. 1. [Ark Knowledge Center](https://connect.arkpes.com/knowledge?hsLang=en-us) 2. [Client Management](https://connect.arkpes.com/knowledge/client-management?hsLang=en-us) 3. [Feature Configuration](https://connect.arkpes.com/knowledge/client-management?hsLang=en-us#feature-configuration) # Managing and Customizing Data Visualizations in ark This guide explains how to use ark's Visualizations feature to view, customize, and analyze financial data across Admin and LP portals. These visual dashboards offer summary cards, graphs, and metrics tailored to fund management, capital accounts, and investments. Basic Admin users and Ark Client Admin users can also control exactly which visualizations LP Contacts and read-only Fund Users see, using the **LP/GP View Controls** panel. --- #### **Jump to a Section** - [What You’ll Learn](https://connect.arkpes.com/knowledge/managing-and-customizing-data-visualizations-in-ark#what) - [Who Can Use This Feature](https://connect.arkpes.com/knowledge/managing-and-customizing-data-visualizations-in-ark#who) - [Overview: Visualizations](https://connect.arkpes.com/knowledge/managing-and-customizing-data-visualizations-in-ark#overview) - [Step-by-Step: Turning Visualizations On or Off](https://connect.arkpes.com/knowledge/managing-and-customizing-data-visualizations-in-ark#step1) - [Step-by-Step: Navigating and Customizing Personal Visualizations](https://connect.arkpes.com/knowledge/managing-and-customizing-data-visualizations-in-ark#step2) - [Step-by-Step: Configuring the LP/GP View](https://connect.arkpes.com/knowledge/managing-and-customizing-data-visualizations-in-ark#step-LP-GP) - [Available Visualizations](https://connect.arkpes.com/knowledge/managing-and-customizing-data-visualizations-in-ark#avail) - Admin Funds - Admin Capital Accounts - LP Capital Accounts - [FAQ](https://connect.arkpes.com/knowledge/managing-and-customizing-data-visualizations-in-ark#faq) - [Next Steps](https://connect.arkpes.com/knowledge/managing-and-customizing-data-visualizations-in-ark#next) --- #### **What You’ll Learn** By the end of this guide, you'll be able to: - Enable or disable visualizations for client portals - Navigate dashboard views and customize elements - Use the LP/GP View Controls to define what LP Contacts and read-only Fund Users see - Understand available visualizations for Admin and LP portals --- #### **Who Can Use This Feature** Only **Ark Client Admin** users can: - Turn the visualizations feature on or off per page - Access the Feature Config tab in Client Configuration **Basic Admin** and **Ark Client Admin** users can: - Access the **LP/GP View Controls** panel (tune icon) on the Admin Portal's Capital Accounts and Funds pages - Configure the visualization options available to LP Portal Contacts and read-only Fund Users on the Admin Portal - Turn individual summary cards, metrics, charts, and graphs on or off for the entire client, and control their order - Continue to customize their own personal views via the gear icon, as in current production No other user types can customize visualizations. **Read-only Fund Users** (GP users on the Admin Portal) and **LP Portal Contacts**: - View Funds & Capital Account visualizations only. Their view is dictated by the options set by Basic Admin and Ark Client Admin users via the LP/GP View Controls. --- #### **Overview: Visualizations** Ark's Visualizations feature enhances data analysis through customizable dashboards with summary cards, graphs, and performance metrics. Visualizations are grouped by: - Admin Funds - Admin Capital Accounts - LP Capital Accounts Views include: - Dashboard (visuals only) - Hybrid (visuals + data grid) - Data View (raw data) There are two independent layers of configuration, each with its own icon: **Personal dashboard view (gear icon)** - Available to Basic Admin and Ark Client Admin users - Affects only that individual user's own view - No longer available to read-only Fund Users or LP Portal Contacts **LP/GP View Controls (tune icon)** - Available to Basic Admin and Ark Client Admin users - Affects the view for all LP Portal Contacts and read-only Fund Users for that client The two layers are independent: changes made in LP/GP View Controls never change a Basic Admin or Ark Client Admin user's own personal dashboard, and vice versa. --- #### **Step-by-Step: Turning Visualizations On or Off (Ark Client Admin users only)** 1. Navigate to the client dashboard 2. Click the three-dot menu and select **Edit '\[Client Name\]'** 3. Go to the **Feature Config** tab 4. Use toggles to enable: - Admin Funds Visualizations - Admin Capital Accounts Visualizations - LP Portal Capital Accounts Visualizations 5. Changes apply portal-wide based on user permissions --- #### **Step-by-Step: Navigating and Customizing Personal Visualizations** **To Customize Visualizations:** 1. Click the settings gear icon to enter **Edit Mode** 2. Remove or rearrange elements using “-” or drag-and-drop 3. Add cards or graphs back using the “+” button 4. Exit Edit Mode by clicking the gear icon again **Notes:** - Visualizations automatically group by currency and update based on applied filters - These settings are personal to the individual Basic Admin or Ark Client Admin user and do not affect what LP Contacts or read-only Fund Users see - Read-only Fund Users and LP Portal Contacts no longer see the gear icon and cannot customize their own view --- #### **Step-by-Step: Configuring the LP/GP View** Available to Basic Admin and Ark Client Admin users on the Admin Portal's **Capital Accounts** and **Funds** pages. 1. Open the Capital Accounts (or Funds) page for the client 2. Click the **tune icon** (tooltip: *LP/GP View Controls*), located to the left of the standard dashboard gear icon in the upper-right of the page![](https://connect.arkpes.com/hs-fs/hubfs/image-png-Aug-12-2026-09-04-58-7846-PM.png?width=1298&height=730&name=image-png-Aug-12-2026-09-04-58-7846-PM.png) 3. The **LP/GP View Controls** panel opens on the right, with the subtitle "Configure what LP Contacts and read-only Fund Users can see." It is divided into two sections: - **Metrics:** summary cards and metric cards (e.g. Capital Committed, Funded, Unfunded, Distributions, Value, RVPI, DPI, TVPI, % Unfunded, % Funded, MOCC) - **Charts and Graphs:** e.g. Committed By Fund, Total Value and Distributions, Committed to Paid![](https://connect.arkpes.com/hs-fs/hubfs/image-png-Aug-12-2026-09-05-21-7750-PM.png?width=1298&height=730&name=image-png-Aug-12-2026-09-05-21-7750-PM.png) 4. Use the **toggle** on each row to turn that card, metric, or chart on or off for the client 5. Use the **up/down arrow buttons** on each row to reorder cards within their section (for example, moving one metric above another) 6. Click **Save** (or **Cancel** to discard) 7. A confirmation dialog appears: **Update LP/GP Views?**: "This action will refresh the LP Portal Contacts view for this client and update the Read-Only view in the Admin Portal. Summary cards, metrics, charts and graphs will be turned on or off based on the settings saved. Continue with this update?" Click **Continue** to apply, or **Close** to go back. What saving does: - Updates the configuration for the **entire client**, dictating the view for all LP Contacts and read-only Fund Users![](https://connect.arkpes.com/hs-fs/hubfs/image-png-Aug-12-2026-09-05-50-4480-PM.png?width=1295&height=730&name=image-png-Aug-12-2026-09-05-50-4480-PM.png) - Refreshes the LP Portal Contacts view and the Read-Only view in the Admin Portal - Does **not** change the Basic Admin or Ark Client Admin user's own dashboard, which continues to be managed with the gear icon System defaults: - If the LP/GP View Controls have never been configured for a client, the system automatically displays a set of **System Defaults** to LP Contacts and read-only Fund Users. Data consistency: - Visualizations continue to pull data from transaction mapping and rely on stable internal codes rather than display labels. If a client renames a column (for example, renaming "Committed" to "Investment Amount"), the visualizations remain accurate. --- #### **Available Visualizations** ##### Admin Funds Visualizations **Summary Cards:** - **Total Funds:** The total number of funds managed. - **Capital Committed:** The total capital committed by investors. - **Funded:** The amount of committed capital that has been called and funded. - **Unfunded:** The remaining amount yet to be called from the committed capital. - **Distributions:** Total amount distributed back to investors. - **Value:** The current value of the assets. - Note: The data for these summary cards is pulled from transaction mapping and uses columns with the codes "COMMITTED", "CONTRIBUTIONS", "UNFUNDED", "DISTRIBUTION", and "VALUE", regardless of any custom labels (names) applied to these columns by clients. **Metric Cards:** - **RVPI (Residual Value to Paid-In):** Measures remaining value compared to contributions (Value / Contributions). - **DPI (Distributions to Paid-In):** Measures distributions compared to contributions (Distributions / Contributions). - **TVPI (Total Value to Paid-In):** Measures total value, including distributions, compared to contributions ((Value + Distributions) / Contributions). - **% Unfunded:** The percentage of capital still unfunded (Unfunded / Committed). - **% Funded:** The percentage of capital that has been funded (Contributions / Committed). - **MOCC (Multiple on Committed Capital):** Measures overall returns on invested capital ((Value + Distributions) / Committed). **Graphs:** - **Entity Type by Fund:** Displays the breakdown of fund types. - **Commitments by Fund:** Displays the total commitments for each fund. - **Total Value:** Shows the distributions to NAV (Net Asset Value) of each fund. - **Committed to Funded:** Displays the relationship between the total commitment and the amount that has been funded. #### Admin Capital Accounts Visualizations **Summary Cards:** - **Capital Committed**: Total committed capital from investors. - **Funded**: Total capital that has been called and paid. - **Unfunded**: The remaining amount yet to be called from the committed capital. - **Distributions**: Total amount distributed back to investors. - **Value**: The current value of the assets. - Note: The data for these summary cards is pulled from transaction mapping and uses columns with the codes "COMMITTED", "CONTRIBUTIONS", "UNFUNDED", "DISTRIBUTION", and "VALUE", regardless of any custom labels (names) applied to these columns by clients. **Metric Cards:** - **RVPI (Residual Value to Paid-In)**: Measures remaining value compared to contributions (Value / Contributions). - **DPI (Distributions to Paid-In)**: Measures distributions compared to contributions (Distributions / Contributions). - **TVPI (Total Value to Paid-In)**: Measures total value, including distributions, compared to contributions ((Value + Distributions) / Contributions). - **% Unfunded**: The percentage of capital still unfunded (Unfunded / Committed). - **% Funded**: The percentage of capital that has been funded (Contributions / Committed). - **MOCC (Multiple on Committed Capital)**: Measures overall returns on invested capital ((Value + Distributions) / Committed). **Graphs:** - **Commitments by Fund:** Displays the total commitments for each fund. - **Total Value:** Shows the distributions to NAV (Net Asset Value) of each fund. - **Committed to Funded:** Displays the relationship between the total commitment and the amount that has been funded. #### LP Capital Accounts Visualizations **Summary Cards:** These are controlled by the LP/GP View Controls panel described above. - **Capital Committed**: Total committed capital from investors. - **Funded**: Total capital that has been called and paid. - **Unfunded**: The remaining amount yet to be called from the committed capital. - **Distributions**: Total amount distributed back to investors. - **Value**: The current value of the assets. - Note: The data for these summary cards is pulled from transaction mapping and uses columns with the codes "COMMITTED", "CONTRIBUTIONS", "UNFUNDED", "DISTRIBUTION", and "VALUE", regardless of any custom labels (names) applied to these columns by clients. **Metric Cards:** - **RVPI (Residual Value to Paid-In)**: Measures remaining value compared to contributions (Value / Contributions). - **DPI (Distributions to Paid-In)**: Measures distributions compared to contributions (Distributions / Contributions). - **TVPI (Total Value to Paid-In)**: Measures total value, including distributions, compared to contributions ((Value + Distributions) / Contributions). - **% Unfunded**: The percentage of capital still unfunded (Unfunded / Committed). - **% Funded**: The percentage of capital that has been funded (Contributions / Committed). - **MOCC (Multiple on Committed Capital)**: Measures overall returns on invested capital ((Value + Distributions) / Committed). **Graphs:** - **Commitments by Fund:** Displays the total commitments for each fund. - **Total Value:** Shows the distributions to NAV (Net Asset Value) of each fund. - **Committed to Funded:** Displays the relationship between the total commitment and the amount that has been funded. --- #### **FAQ** **Q: Why isn’t my data updating in real time on the LP portal?** A: Visualizations reflect the most recently published quarter. Real-time changes are not shown unless data is published. **Q: What's the difference between the gear icon and the tune icon?** A: The gear icon controls a Basic Admin or Ark Client Admin user's own personal dashboard. The tune icon (LP/GP View Controls) controls what LP Contacts and read-only Fund Users see for the entire client. **Q: Can LP Contacts or read-only Fund Users turn cards on/off or reorder them?** A: No. The settings gear icon has been removed from their interface, so they can no longer customize their own visualizations. Their dashboards reflect the view saved by Basic Admin or Ark Client Admin users in LP/GP View Controls. **Q: Will renaming a column break the visualizations?** A: No. Visualizations rely on stable internal codes from transaction mapping rather than display labels, so renaming a column (e.g. "Committed" to "Investment Amount") does not affect accuracy. **Q: Does changing LP/GP View Controls affect a Basic Admin or Ark Client Admin user's own dashboard?** A: No, the two are independent. --- #### **Next Steps** - Reach out to [**support@arkpes.com**](mailto:support@arkpes.com) with any setup or customization questions - [NEW Portfolio Investments](https://connect.arkpes.com/knowledge/new-portfolio-investments?hsLang=en-us#main-content) - [Portfolio Investment Uploading Guides](https://connect.arkpes.com/knowledge/new-portfolio-investments?hsLang=en-us#portfolio-investment-uploading-guides) - [Client Management](https://connect.arkpes.com/knowledge/client-management?hsLang=en-us#main-content) - [Client Portal Setup](https://connect.arkpes.com/knowledge/client-management?hsLang=en-us#client-portal-setup) - [Branding & Communication Settings](https://connect.arkpes.com/knowledge/client-management?hsLang=en-us#branding-communication-settings) - [Transaction & Metric Mapping](https://connect.arkpes.com/knowledge/client-management?hsLang=en-us#transaction-metric-mapping) - [Report Configuration](https://connect.arkpes.com/knowledge/client-management?hsLang=en-us#report-configuration) - [Feature Configuration](https://connect.arkpes.com/knowledge/client-management?hsLang=en-us#feature-configuration) - [Client Onboarding & Go-Live](https://connect.arkpes.com/knowledge/client-management?hsLang=en-us#client-onboarding-go-live) - [Data & Transaction Management](https://connect.arkpes.com/knowledge/data-transaction-management?hsLang=en-us#main-content) - [Transactions & Metrics](https://connect.arkpes.com/knowledge/data-transaction-management?hsLang=en-us#transactions-metrics) - [Fund Allocations](https://connect.arkpes.com/knowledge/data-transaction-management?hsLang=en-us#fund-allocations) - [Document Management](https://connect.arkpes.com/knowledge/document-management?hsLang=en-us) - [Financial Management](https://connect.arkpes.com/knowledge/financial-management?hsLang=en-us#main-content) - [General Ledger & Chart of Accounts](https://connect.arkpes.com/knowledge/financial-management?hsLang=en-us#general-ledger-chart-of-accounts) - [Journal Entries & Entity Tagging](https://connect.arkpes.com/knowledge/financial-management?hsLang=en-us#journal-entries-entity-tagging) - [Bank Integrations](https://connect.arkpes.com/knowledge/financial-management?hsLang=en-us#bank-integrations) - [Cash Receipts](https://connect.arkpes.com/knowledge/financial-management?hsLang=en-us#cash-receipts) - [GL Reports & Reporting Tools](https://connect.arkpes.com/knowledge/financial-management?hsLang=en-us#gl-reports-reporting-tools) - [Fund & Investor Management](https://connect.arkpes.com/knowledge/fund-investor-management?hsLang=en-us) - [Investor Communications](https://connect.arkpes.com/knowledge/investor-communications?hsLang=en-us#main-content) - [Capital Calls & Distributions](https://connect.arkpes.com/knowledge/investor-communications?hsLang=en-us#capital-calls-distributions) - [General Mailings](https://connect.arkpes.com/knowledge/investor-communications?hsLang=en-us#general-mailings) - [Product Updates](https://connect.arkpes.com/knowledge/product-updates?hsLang=en-us#main-content) - [Release Notes](https://connect.arkpes.com/knowledge/product-updates?hsLang=en-us#release-notes) - [User & Access Management](https://connect.arkpes.com/knowledge/user-access-management?hsLang=en-us#main-content) - [Admin Users & Teams](https://connect.arkpes.com/knowledge/user-access-management?hsLang=en-us#admin-users-teams) - [Contacts & Impersonation](https://connect.arkpes.com/knowledge/user-access-management?hsLang=en-us#contacts-impersonation) - [Authentication & Login](https://connect.arkpes.com/knowledge/user-access-management?hsLang=en-us#authentication-login) - [Audit & Activity Reporting](https://connect.arkpes.com/knowledge/user-access-management?hsLang=en-us#audit-activity-reporting) - [LP Portal](https://connect.arkpes.com/knowledge/lp-portal?hsLang=en-us) [![ARK\_\_Logotype\_fullcolor-1](https://connect.arkpes.com/hs-fs/hubfs/ARK__Logotype_fullcolor-1.png?width=200&height=68&name=ARK__Logotype_fullcolor-1.png "ARK__Logotype_fullcolor-1")](http://arkpes.com) [mailto:support@arkpes.com](mailto:support@arkpes.com) Copyright © 2025, Ark PES
